Product Details

Description

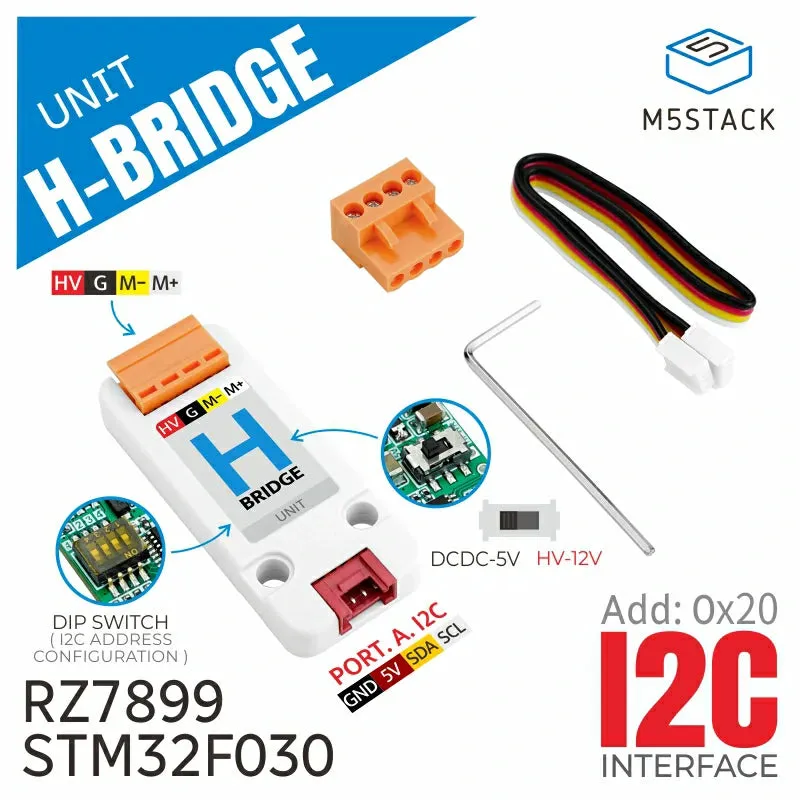

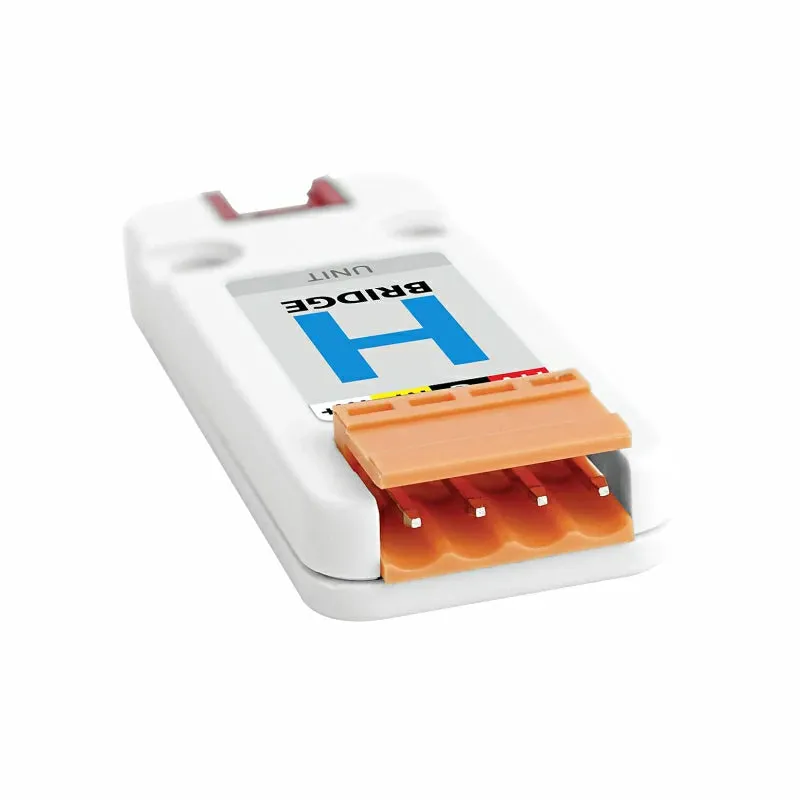

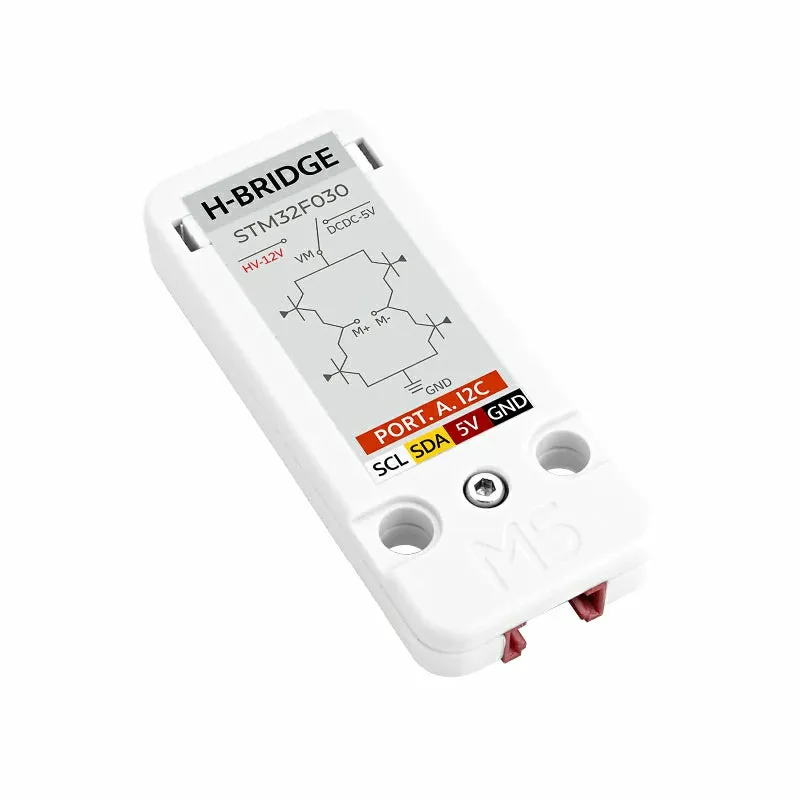

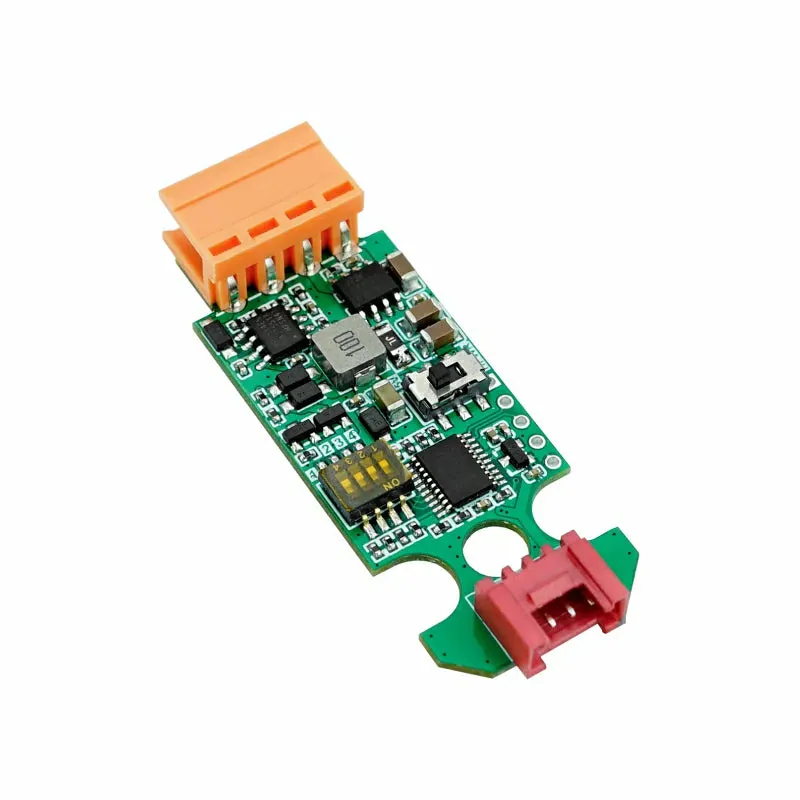

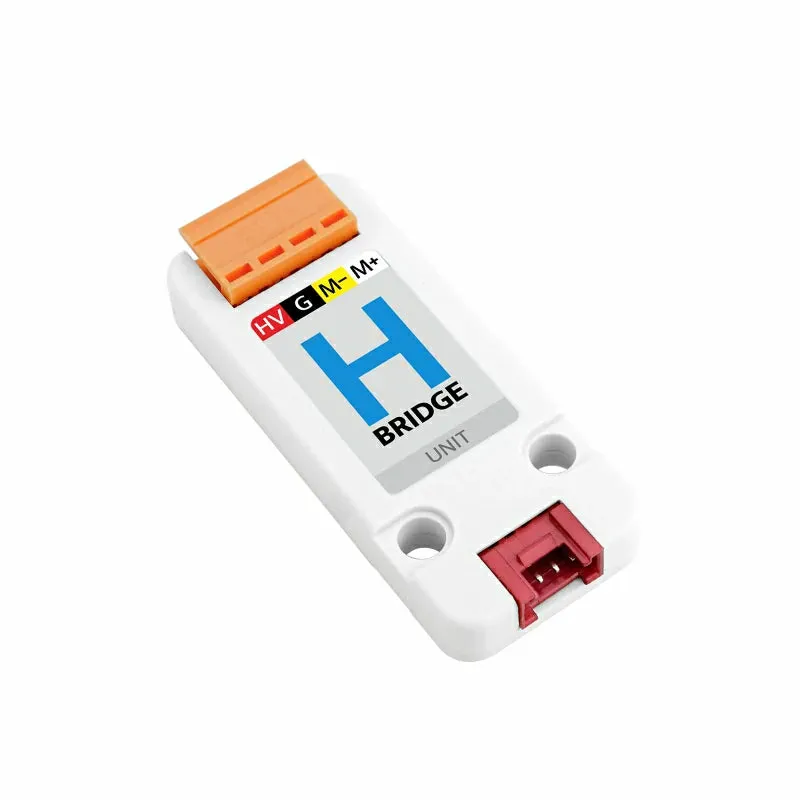

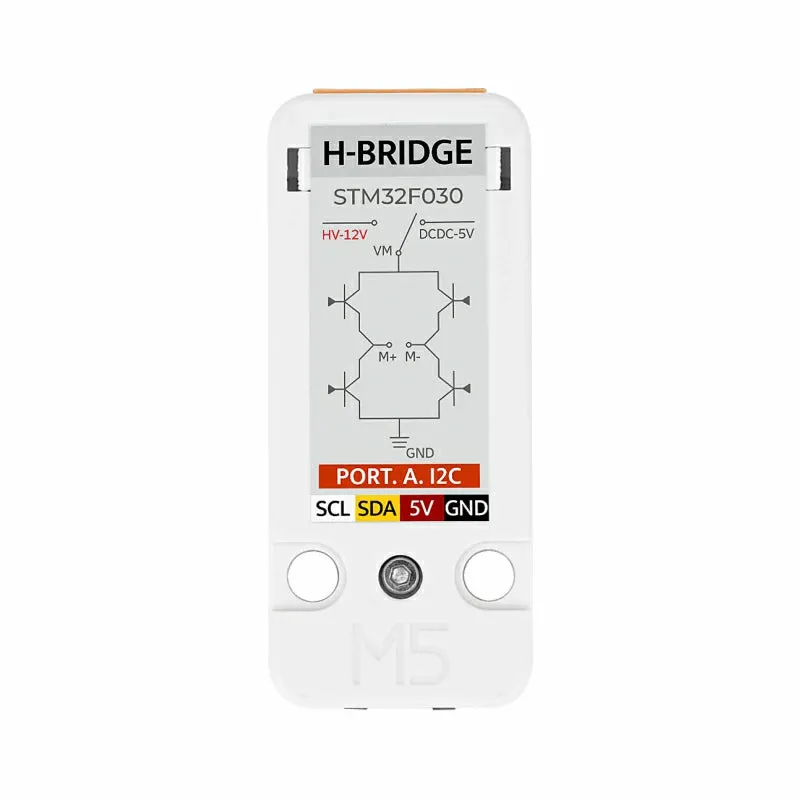

Hbridge Unit is a highly efficient DC motor drive module designed to provide reliable motor control functionality. It incorporates the "STM32F030 RZ7899" scheme, enabling precise control of DC motors. The module communicates with the M5 host via I2C, allowing for PWM control of motor speed as well as forward, backward, and braking functions.

Equipped with robust protection features, the Hbridge Unit ensures the safe operation of the motor. It includes over-current, over-voltage, and over-temperature protection functions, providing a reliable and secure drive solution.

The module is designed with versatility in mind and includes 6-12V and 5V switching circuits, accommodating the input power requirements of different motors. This flexibility makes the Hbridge Unit suitable for a wide range of applications, including robotics, motor drives, industrial automation, and smart home systems.

Features

  • Overcurrent, overvoltage, overtemperature protection
  • Power switching
  • I2C address: Default 0x20
  • Programming platform: Arduino, UIFlow

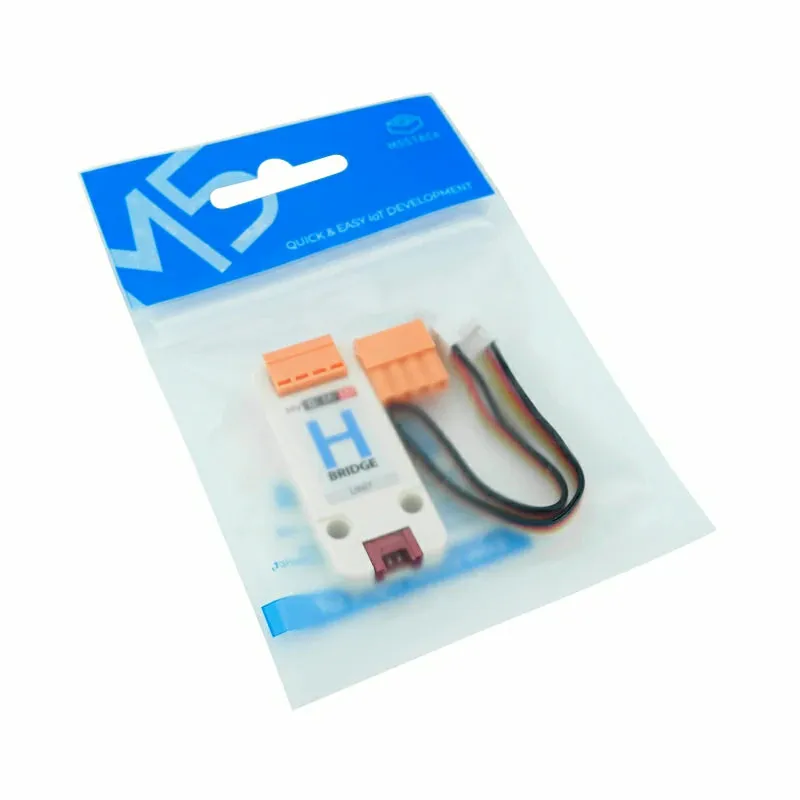

Includes

  • 1 × Hbridge Unit
  • 1 × VH3.96-4P
  • 1x HY2.0-4P Cable(20cm)
  • 1x M2 Hex Wrench

Applications

  • robot
  • Motor driven
  • Industrial automation
  • Smart home

Specification

ResourcesParameters
MCUSTM32F030F4P6
DC bidirectional motor driver chipRZ7899
External access DC voltageMAX 12V
I2C mailing addressDefault 0x20 (can be modified by toggle of the encoding switch)
Maximum allowable current3A
Use temperature0-40°C

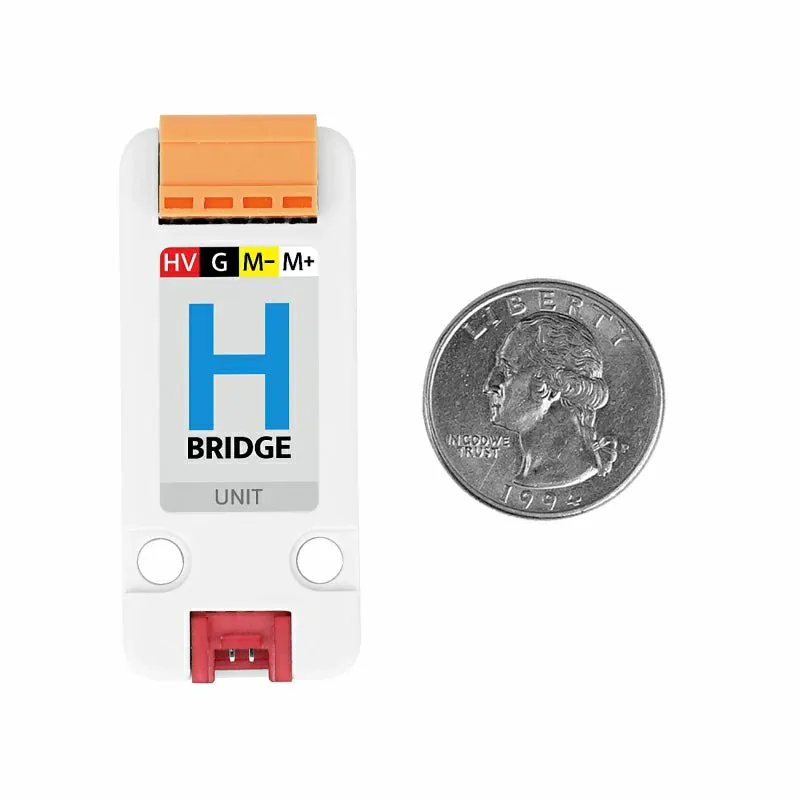

Product Size48mm × 24mm ×8mm
Package Size136mm × 92mm × 13mm
Product Weight8.9g
Package Weight13.6g

Schematic

Module Size

Examples

Arduino

UIFlow

UIFlow Blocks

  • Init device I2C address
  • Get configure value
  • Get voltage / adc raw value
  • Get FW version
  • Set direction
  • Set pwm duty cycle 8bit value
  • Set pwm duty cycle 16bit value
  • Set pwm frequency
